Baader Diamond Steeltrack 2" Focuser for Refractors, 80mm Travel - 2957210
Highlights
- True diamonds form a micro-geared high precision drive system never accomplished before
- In comparison to conventional Crawford or rack & pinion drives, this micro-geared movement has zero backlash, zero cogging, and zero flexure
- Diamond Steeltrack 2" focusers lift a payload of 6kg (13 lbs) straight up, without slipping, without excessive bearing pre-load (bearing pre-load can be increased further if necessary)
- Bearing system utilizes unbreakable Instrument Grade Roller-Bearings instead of simpler Ball Bearings - handles higher loads with greater rigidity and accuracy. No Teflon-pads anywhere
- 1:10 Stainless Steel fine-focus mechanism, ready for attachment of the optional Diamond Steeldrive temperature-compensating motor drive system
- Detachable drive block assembly is reversible for right hand or left hand fine-focus operation and for attaching the Diamond Steeldrive motor block
- Shortest possible mechanical design achieves optimum balance between focuser height (Back focus) and rigidity requirements
- Zero shift locking knob to precisely stop any movement without affecting optical axis adjustment
Multiple Adapters available for shortest possible connection to most cameras / eyepieces
Mounting of BDS-Adapters on the example of BDS-NT Diamond Steeltrack
Clamping system

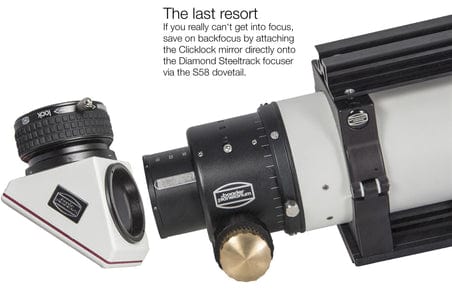

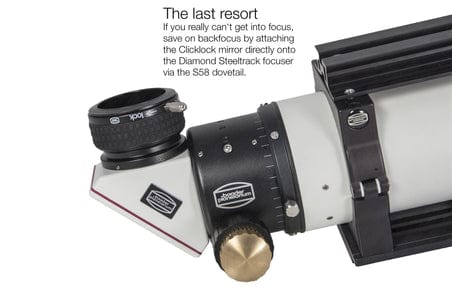

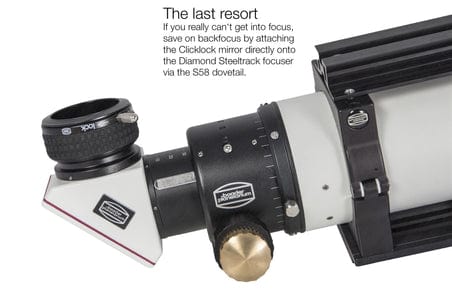

- S58 Dovetail ring-clamp built into focusing tube for accepting optional T-2 / M48 / M68 and other S58 direct-thread adapters to enable direct thread connection of accessories and cameras without 2" clamp
- 2" eyepiece clamp with hardened bronze clamp ring (length of clamp: 12.5mm / ½") included as standard
- Optionally available 2" Baader Click-lock-clamp w. integrated S58 dovetail (added length: 16mm / 5/8")
- Two auxiliary threads (M60x1 and M55x0,75) cut into the RT & NT focusing-tube for attachment of dedicated field flatteners or focal reducers/correctors

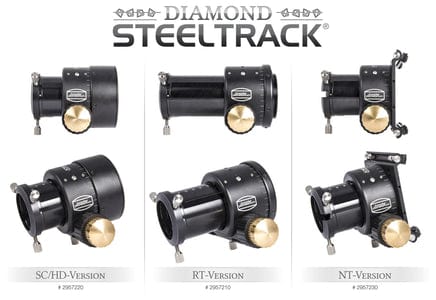

BDS-RT: all views
Imaging / eyepiece projection on the example of BDS-RT Diamond Steeltrack
Focusing Drawtube:
- Each bearing individually adjustable for precise alignment of mechanical vs. optical axis
- Ultra-hard subzero coated bearing races – precision milled and much harder than anodizing or stainless steel
- Over-sized 55mm inner clear diameter, to prevent vignetting, with anti-reflection knife-edge baffles
Specifications
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2957210 |
| Weight (kg) | 1.04 |
| Focuser Travel | 80 mm |
| Payload Capacity (kg) | 6 kg |
| Inner Diameter / Clear Aperture (mm) | 55 |
| Shortest overall height (standard) | 78 mm |
| Shortest overall height (w. opt. adapters) | 65 mm |
| Reduction | 1:10 |
| Rotatable | Yes |
| Finder base | Yes |
| Motorized | No, but can be upgraded |
| Special Features | True diamonds form a micro-geared high precision drive system |
| Included Accessories | Adapters available or under development to fit a wide variety of refractor telescopes |
| Inner Connection (lens sided) | Thread, M60 |
| Outer Connection (lens sided) | Thread, Dovetail ring, M68 x 1, S88 |
| Inner Connection (eyepiece/-camera-sided) | Thread, Clamp, Dovetail ring clamp, M55, S58, 2" (50,8mm) |
| Optional Accessories | Baader Steeldrive temperature compensating motor drive system |
| compatible telescopes | Refractors |
| Focuser style | Crayford |
| Focuser size | 2 inch |
