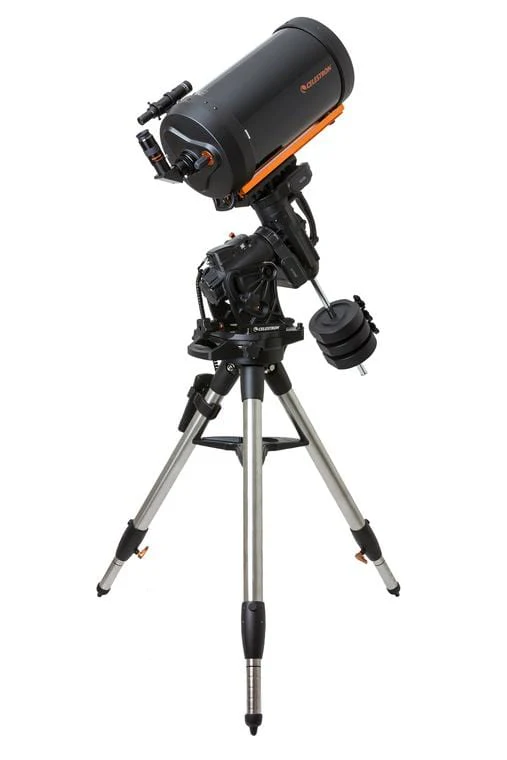

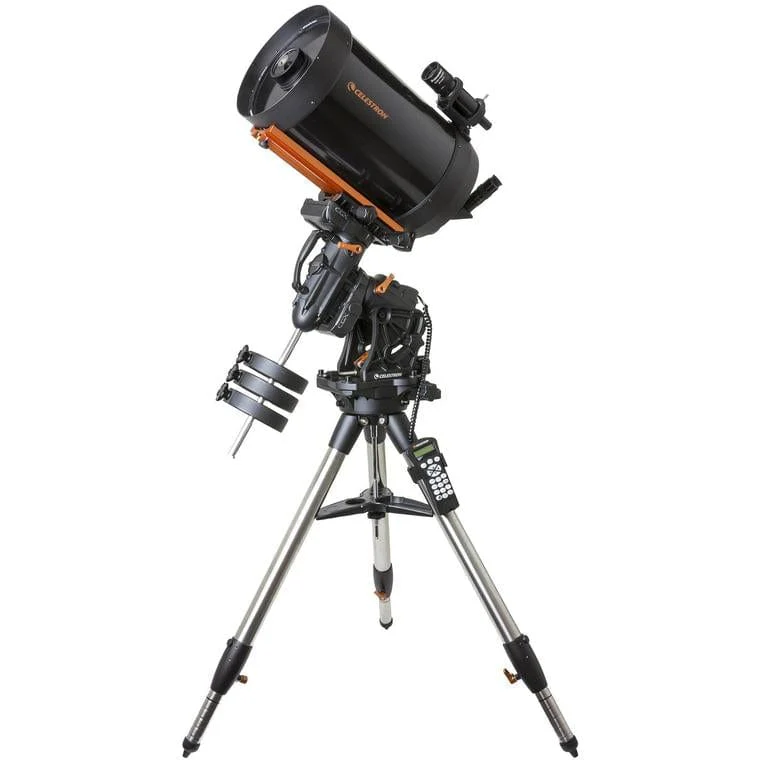

Celestron CGX 1100 SCT - 12052

Highlights

• 11" Schmidt-Cassegrain Optical Tube Assembly
• Aluminum Optical Tube
• Celestron's premium StarBright XLT coatings
• 2800mm focal length (f/10)
• 40mm eyepiece included (70x)
• Visual back allows for use with 1.25" accessories 9x50 finder scope to help accurately find objects
• Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
• Includes dovetail rail compatible with CGE mount

Specifications

Optical Tube Info:
Optical Design:	Schmidt-Cassegrain
Aperture:	279.4mm (11")
Focal Length:	2800mm (110")
Focal Ratio:	f/10
Focal Length of Eyepiece 1:	40mm (1.57")
Magnification of Eyepiece 1:	70x
Finder scope:	9x50
Star Diagonal:	1.25" Star Diagonal
Optical Tube:	Aluminum
Highest Useful Magnification:	660x
Lowest Useful Magnification:	40x
Limiting Stellar Magnitude:	14.7
Resolution (Rayleigh):	0.5 arc seconds
Resolution (Dawes):	0.42 arc seconds
Light Gathering Power (Compared to human eye):	1593x
Secondary Mirror Obstruction:	95mm (3.75")
Secondary Mirror Obstruction by Diameter:	34%
Secondary Mirror Obstruction by Area:	12%
Optical Coatings:	StarBright XLT
Optical Tube Length:	610mm (24")
Optical Tube Diameter:	312.42mm (12.3")
Optical Tube Weight:	27.5 lbs (12.4 kg)
Dovetail:	CGE Dovetail Bar
Mount Info:
Mount Type:	Computerized Equatorial
Instrument load capacity:	55 lbs (25 kg)
Height adjustment range (includes mount and tripod):	1200.15mm - 1968.5mm (47.25" - 77.5")
Tripod Leg Diameter:	50.8mm (2") Steel tripod with graduated markings on lower section
Latitude adjustment range:	3° - 65°
Mount Head Weight:	44 lbs (20 kg)
Accessory Tray:	Yes
Tripod Weight:	19.2 lbs (8.7 kg)
Weight of Counterweights:	3 x 11 lbs
Slew Speeds:	9 slew speeds - max speed 4°/second
Tracking Rates:	Sidereal, Solar and Lunar
Tracking Modes:	EQ North and EQ South
GPS:	N/A
Dovetail Compatibility:	Dual saddle plates (CG-5 and CGE saddle)
Number of Auxiliary Ports:	2 AUX Ports (Hand Control can use either AUX Port)
Autoguide Port:	Yes
USB Port:	Yes, input for Mount and Hand Control
Power Requirements:	12V DC, 4 amps
Motor Drive:	DC servo motors
Alignment Procedures:	2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic Error Correction:	Yes
Computerized Hand Control:	2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection
NexStar+ Database:	40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software:	CPWI Telescope Control Software, Celestron Starry Night Special Edition Software, and SkyPortal App
Total Kit Weight:	123.7 lbs (56.11 kg)
Included Items:	CGX Equatorial Head CGX Tripod Accessory Tray 3 x 11 lbs counterweights NexStar+ Hand Control 8mm Allen Wrench 12V DC Power Cable Hand Control Holster
Additional Information
Solar Warning	Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result. Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it. Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
