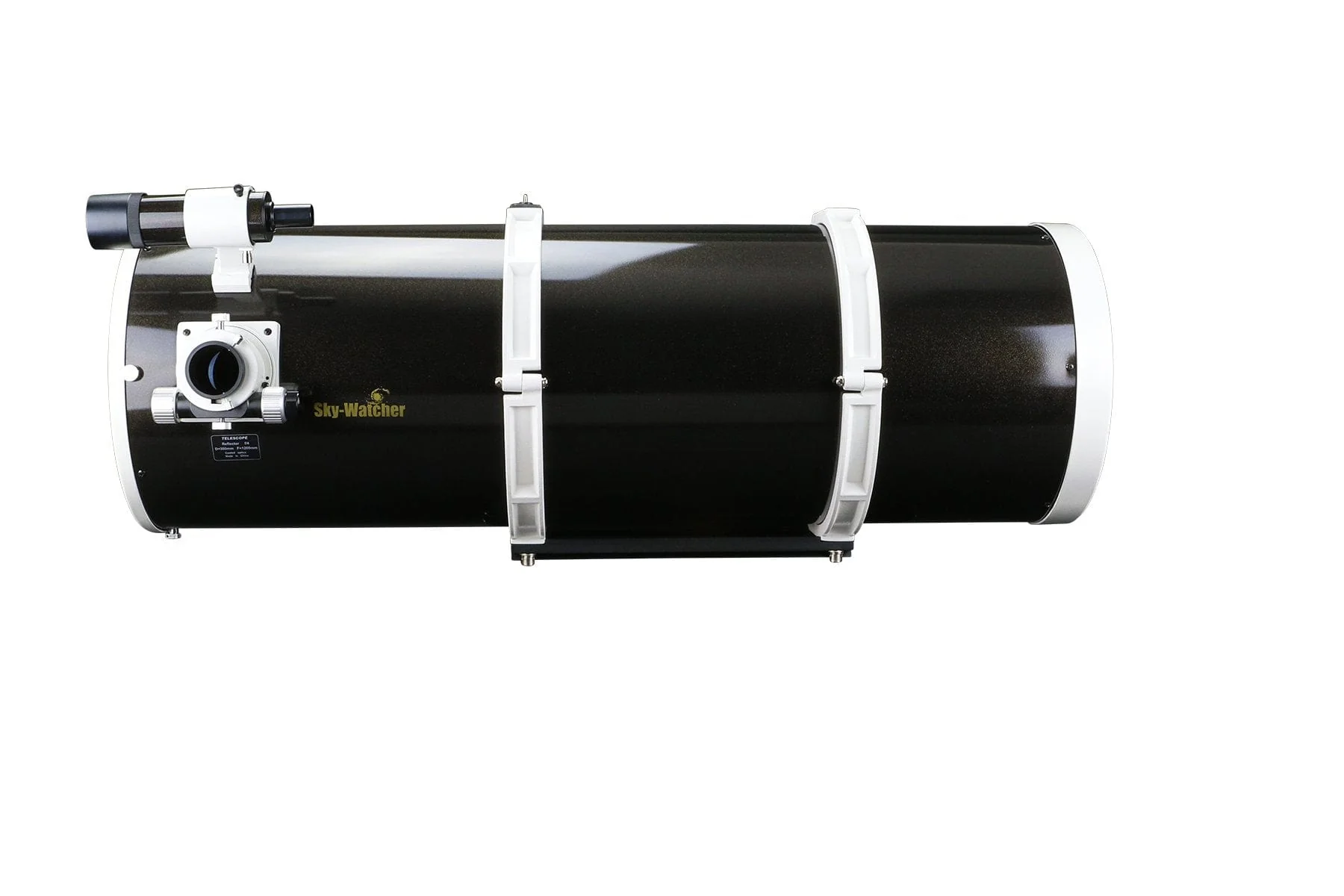

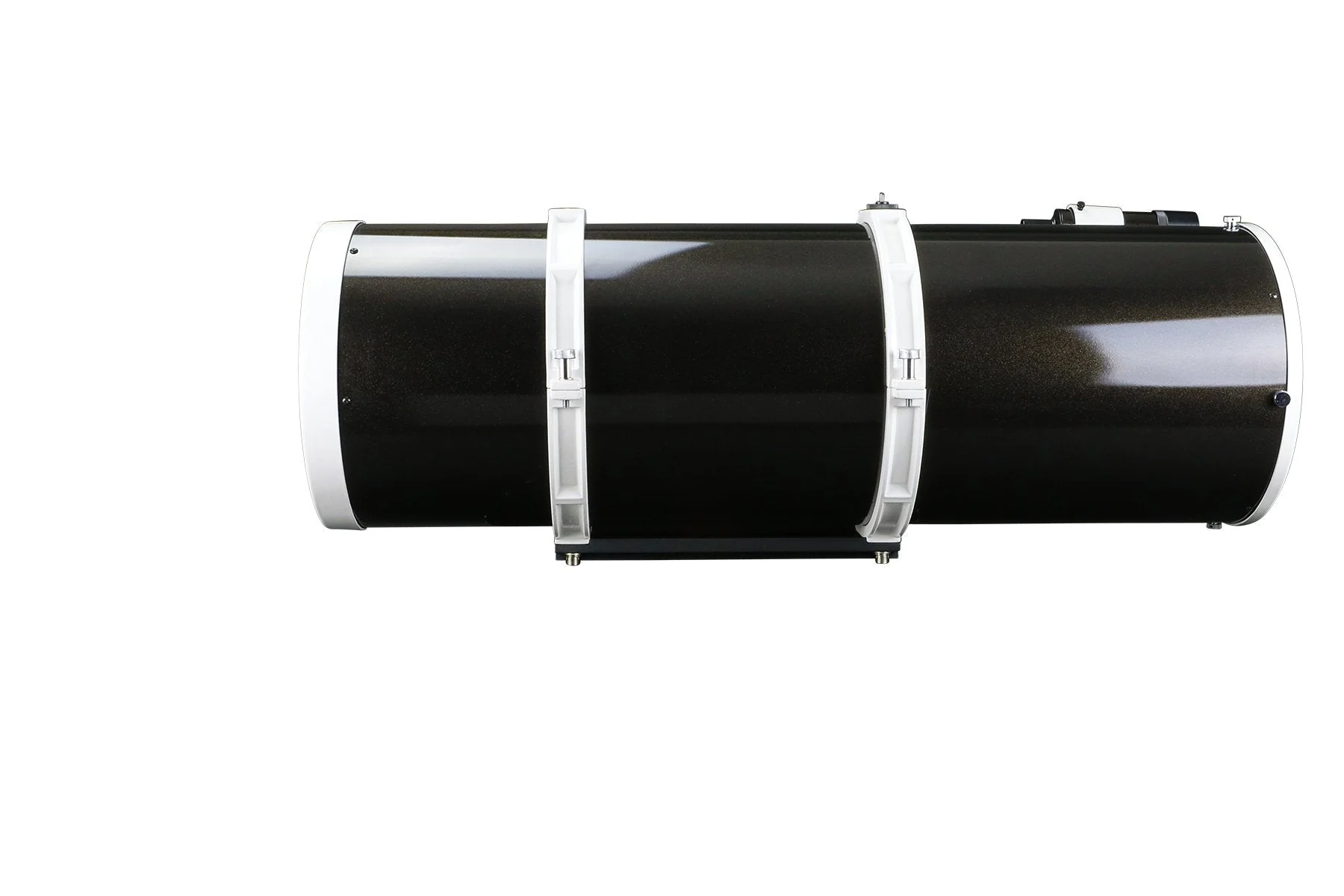

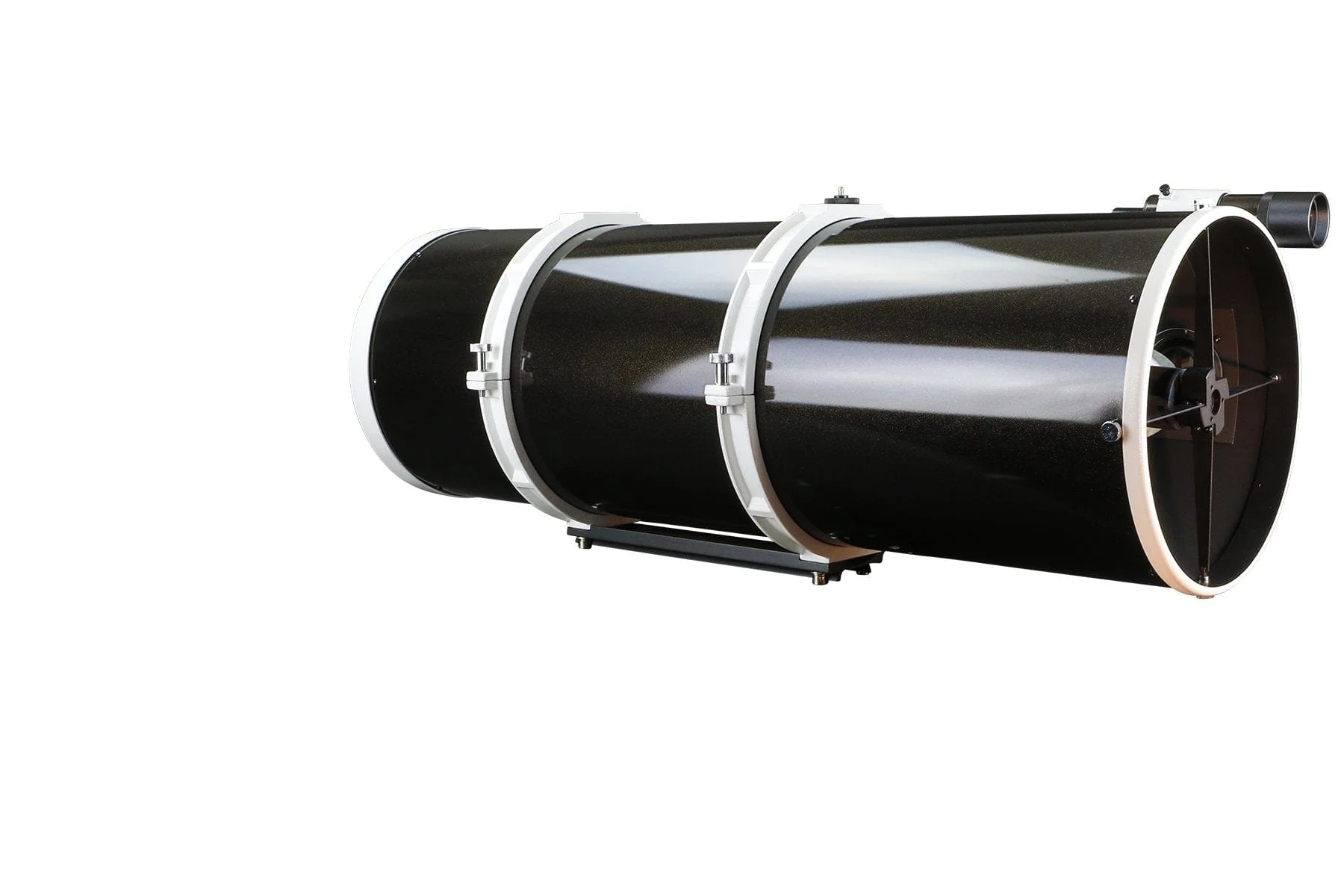

Sky-Watcher Quattro 300P 12" Imaging Newtonian - S11230
Highlights
- 305mm aperture, 1200mm focal length
- Fast f/4 focal ratio
- Parabolic mirror designed for imaging with 94% reflectivity
- 10:1, dual-speed, 2-inch Crayford-style focuser
- Oversized secondary mirror produces greater illumination for full-frame DSLR and CCD cameras
- Tube rings, mounting plate, eyepiece adapters, and 9x50 finder scope included
The new Sky-Watcher Quattro Imaging Newtonian with dual-speed focuser incorporates a superb mirror-set with two significant advantages over competing products. A 2" dual-speed 10:1 ratio focuser is included for excellent focusing precision. Additionally, the tube length has been slightly shortened to optimize performance for prime-focus photography.
Even better performance for astrophotography, and visual use, can be achieved when used in combination with the Sky-Watcher Quattro coma corrector.
Specifications
| SKU | S11230 |
| UPC | 050234112307 |
| Optical Info | |
|---|---|
| Optical Design | Newtonian |
| Mirror Coatings | 94% Aluminum |
| Glass Type | Borosilicate |
| Primary Aperture (mm) | 305 |
| Primary Edge Thickness | 38mm |
| F/Ratio | 4 |
| Focal Length (mm) | 1200 |
| Secondary Diameter | 102mm |
| Secondary Obstruction (by diameter) | 33% |
| Secondary Obstruction by Area | 11% |
| Observational Info | |
| Dawes Limit | 0.38 |
| Rayleigh Limit | 0.46 |
| Limiting Mag. | 14.9 |
| Minimum Magnification | 43 |
| Maximum Magnification | 600 |
| Light Gathering (compared to next size down) | 44% |
| General Info | |
| Focuser | 2" Dual Speed Crayford |
| OTA Length (Retract/Ext.) | 42.5" |
| OTA Outer Diameter | 14.25" |
| OTA Weight (with accessories) | 57 |
| Accessories | |
| Included Finder | 9x50 Finder |
| Included Diagonal | No |
| Mounting Accessories | Rings/D-Rail |
| Included Eyepieces | None |
| Included Case | No |
| Corrector | No (optional) |
| Shipping Weights & Dimensions | |
