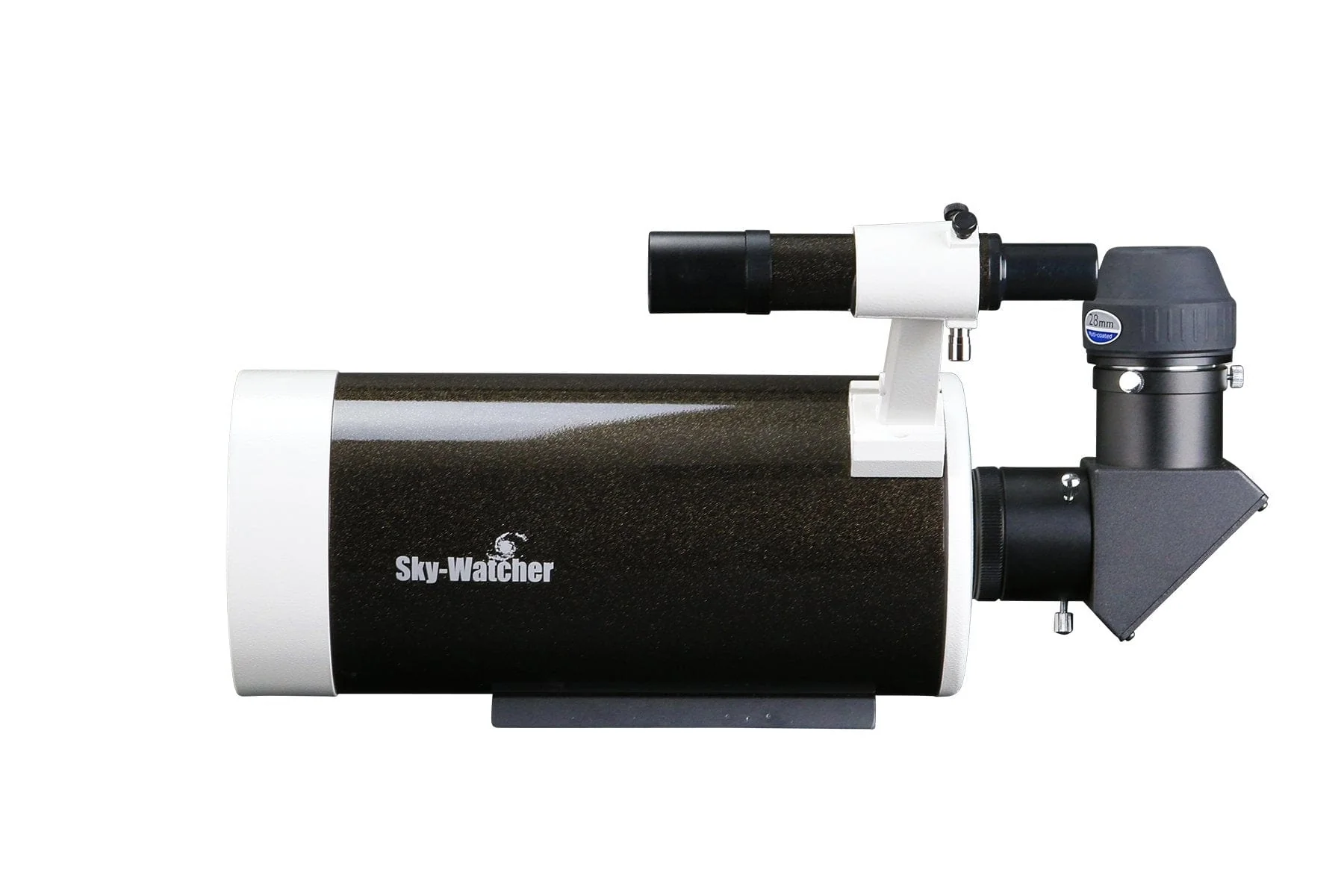

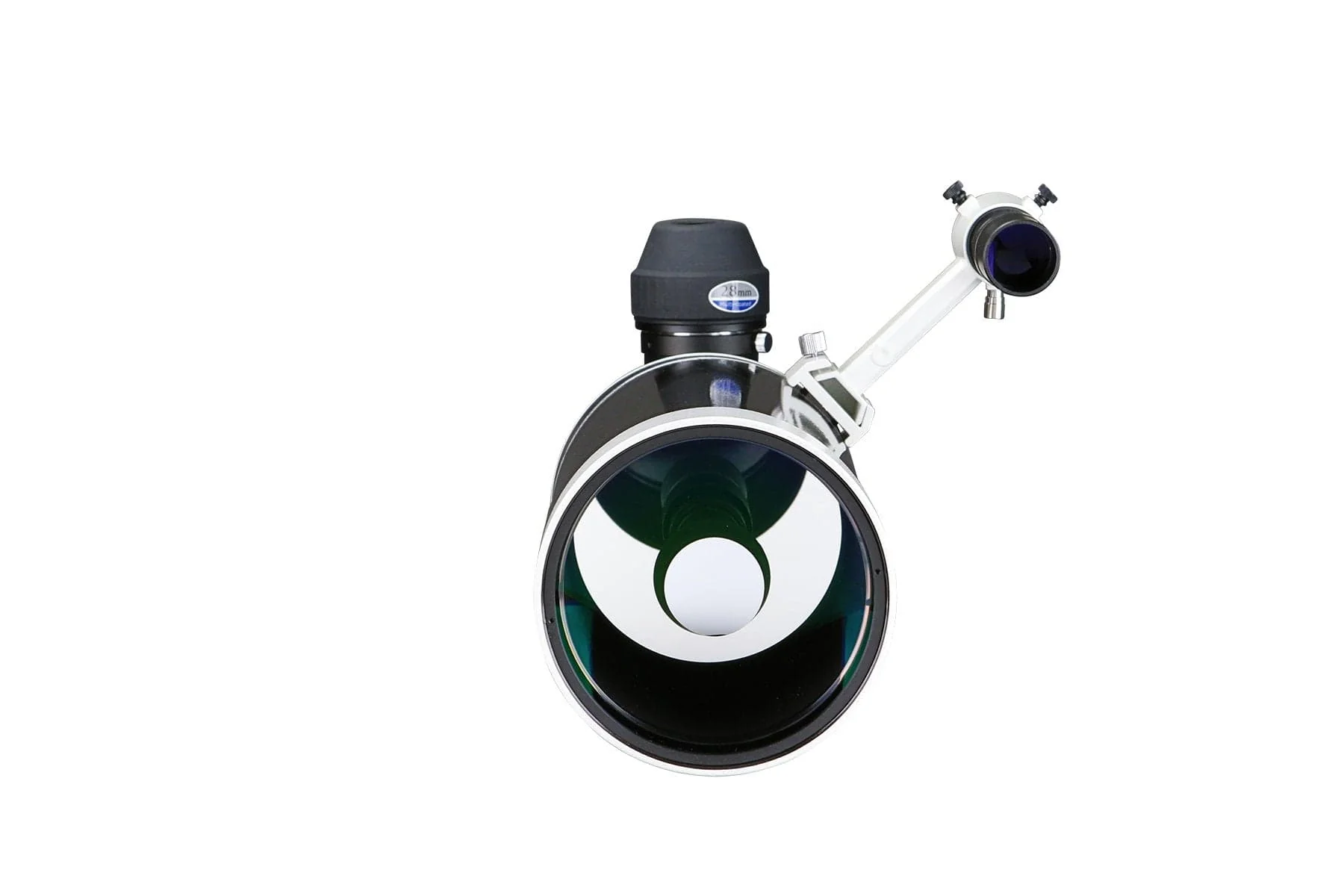

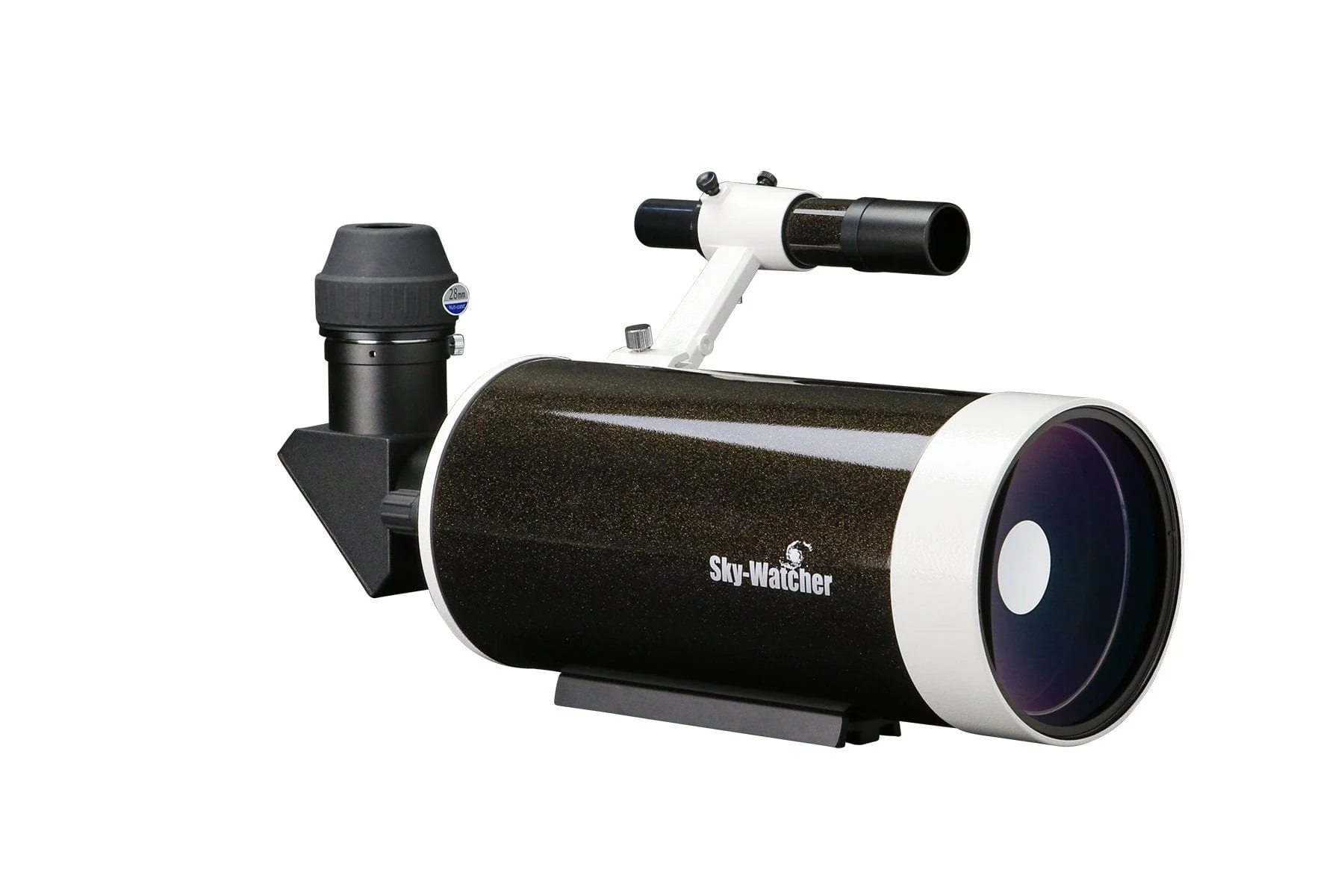

Sky-Watcher Skymax 127 5" Optical Tube Only - S11520
Highlights
- Maksutov-Cassegrain optical design
- Primary and secondary mirrors feature proprietary Radiant™ Aluminum Quartz™ (RAQ™) coatings
- Corrector plate featuring Metallic High-Transmission Coatings™ (MHTC™) virtually eliminates chromatic aberrations
- 127mm aperture, 1540mm focal length, f/12.1 focal ratio
- Aluminum tube coated with glossy, black diamond metal-flake finish
- Included accessories: a 2-inch 28mm eyepiece, a 6x30 finder scope, V-style dovetail, and a 2-inch diagonal.
The Sky-Watcher Skymax Maksutov-Cassegrains are the ultimate take-anywhere telescopes. Despite their small dimensions they pack a powerful punch. Their high-resolution, diffraction-limited optical systems are multi-coated to maximize contrast and image sharpness.
Note: This is the optical tube only and requires a mount or tripod. It does not include a 2" to 1.25" eyepiece adapter. If required, an Antares MDA is a good choice.

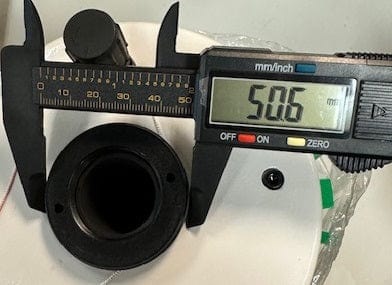

The back of the scope has male SCT threads.
Specifications
| SKU | S11520 |
| UPC | 050234115209 |
| Optical Info | |
|---|---|
| Optical Design | Mak-Cass |
| Mirror Coatings | 94% Aluminum |
| Lens Coatings | Fully Multi-Coated |
| Glass Type | BK7/Borosilicate |
| Primary Aperture (mm) | 127 |
| F/Ratio | 12.1 |
| Focal Length (mm) | 1540 |
| Secondary Diameter | 39mm |
| Secondary Obstruction (by diameter) | 31% |
| Secondary Obstruction by Area | 9% |
| Observational Info | |
| Dawes Limit | 0.91 |
| Rayleigh Limit | 1.1 |
| Limiting Mag. | 13 |
| Minimum Magnification | 18 |
| Maximum Magnification | 250 |
| Light Gathering (compared to next size down) | 55% |
| General Info | |
| Focuser | Primary Mirror |
| OTA Length (Retract/Ext.) | 15" |
| OTA Outer Diameter | 5.75" |
| OTA Weight (with accessories) | 9.7 |
| Accessories | |
| Included Finder | 6x30 Finder |
| Included Diagonal | 2" Star Diagonal |
| Mounting Accessories | V-Rail |
| Included Eyepieces | 28 LET |
| Magnification w/ Included Eyepieces | 55x |
| Included Case | No |
| Corrector | No |
| Shipping Weights & Dimensions | |
