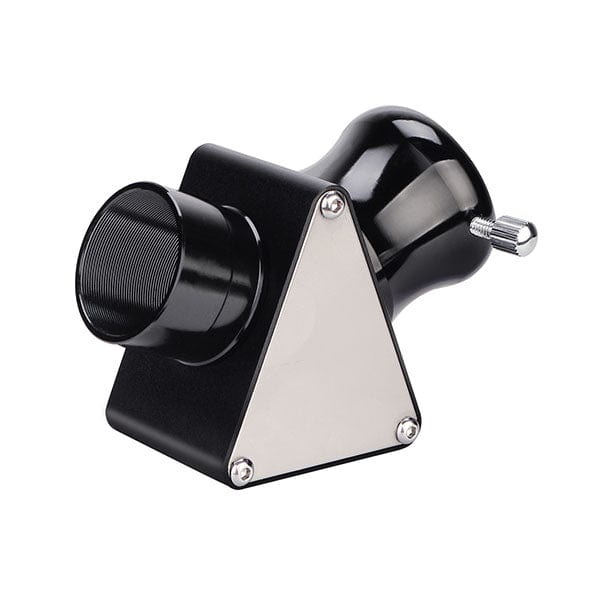

Svbony SV138 1.25" Metal 45 Degree Prism Diagonal - W9107A

This Svbony 45 degree diagonal has a BK7 prism to ensure high-quality optical characteristics. The black baffle design inside the lens barrel can prevent glare and make the image clearer.

• 45 degree diagonal is made of a CNC aluminum alloy
• BK7 prism to ensure high-quality optical characteristics
• Diagonal is designed with brass ring at the eyepiece port which will not damage the surface of the eyepiece when locking the eyepiece
• In order to make it easier for observers to observe special objects, the Svbony 45 degree diagonal includes a filter thread for installing 1.25" filters



Specifications

Model	W9107A
Prism	BK7
Eyepiece size	31.7mm±0.05mm
Color	black
Surface treatment process	All-metal CNC oxidation
Surface Material of mirror body	Stainless steel for Aluminum alloy shell
Plug-in manufacturing process	Black Bright Oxidation
Angle	45 degree
Eyepiece end socket	Design of Brass Ring for Port
Specifications	1.25 inch standard interface
Side	Double-sided metal oxide trigonometric cover
Dust cover	Black and White Dust Covers
Bright oxidation intubation	Thread design
Net weight	154g
