ZWO ASI2600MM DUO MONO CMOS Astrophotography with Built-in Guiding Sensor - ASI2600MM-DUO

ZWO ASI2600MM DUO MONO CMOS Astrophotography with Built-in Guiding Sensor - ASI2600MM-DUO

ZWO ASI2600MM Duo Overview

Building on the success of the ASI2600MC Duo with its built-in guide camera, ZWO has now added this technology into their best-selling monochrome camera! The ASI2600MM Duo features the same main camera sensor as the best-selling ASI2600MM Pro, which has produced countless stunning astrophotography images.

Built-in Guide Sensor

Here are a few benefits of having a guide camera in the main camera body:

  • Eliminates the need for a guide scope or off-axis guider (OAG)
  • Allows more accurate guiding at your telescope's full focal length
  • No OAG allows for extra room in your image train for rotators & more
  • Similar cost to guide camera and guide scope/OAG purchased separately

We will add more details here soon when we get them from ZWO!

Full Specifications

Please note these specifications are simply the expected specs based on the ASI2600MC Duo (color) and final specifications may change slightly.

Main Camera:

  • Sony IMX571 APS-C size Back-illuminated CMOS sensor (monochrome)
  • Resolution: 6248×4176
  • Pixel Size: 3.76μm
  • Sensor Size: 23.5mm x 15.7mm (28.3mm diagonal)
  • Max FPS at full resolution: 15FPS in RAW 8 mode
  • Read Noise: 1.0e-3.3e
  • QE peak: >80%
  • Full well: 73ke (at gain -25)
  • Exposure Range: 32μs-2000s
  • ADC: 16 bit (14-stop dynamic range)
  • USB: 3.0

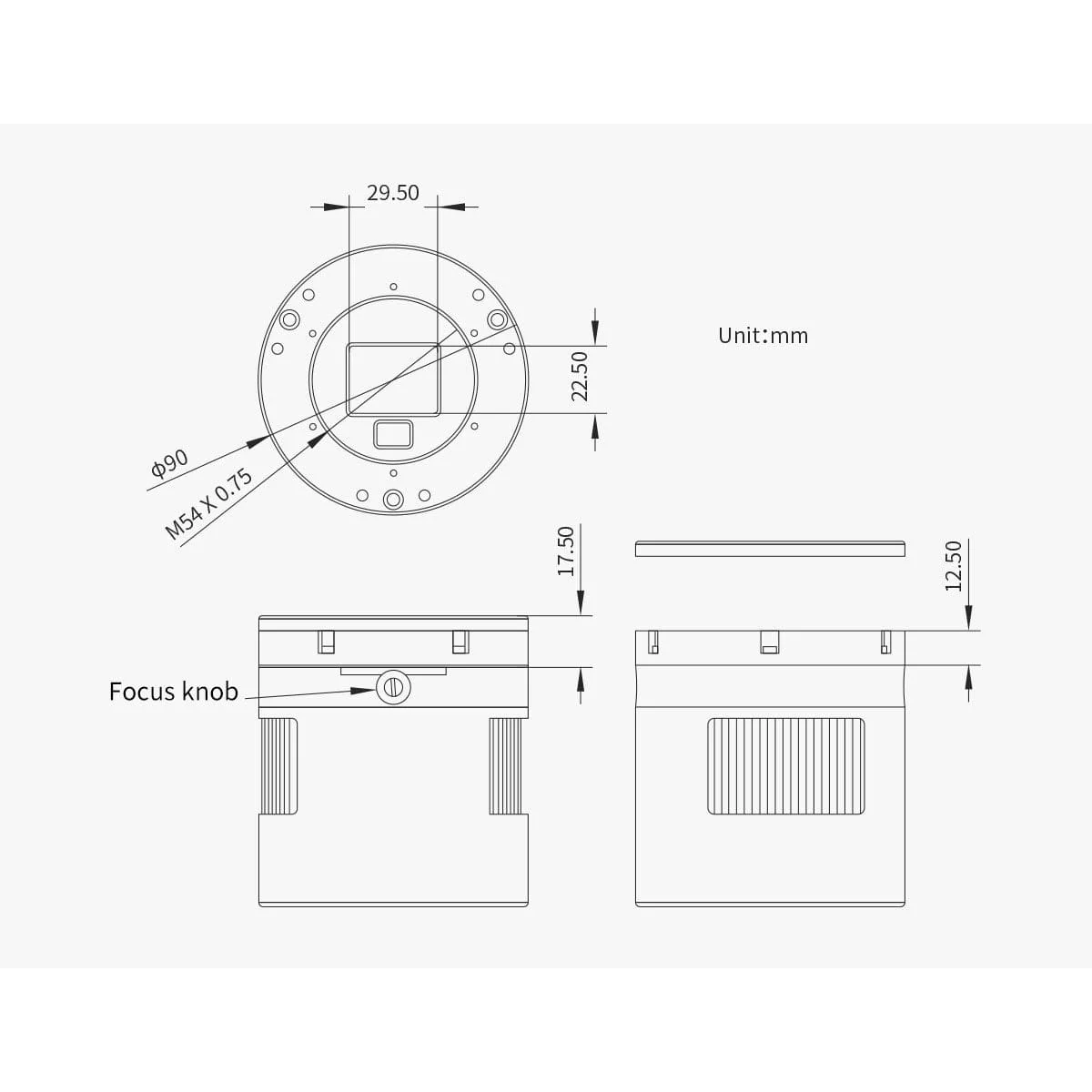

  • Telescope Connection: M54x0.75
  • Back Focus: 17.5mm (standard) or 12.5mm (without tilt plate)

Guide Camera:

  • SC2210 1/1.8" size CMOS sensor (monochrome, same as ASI220MM Mini)
  • Resolution: 1920x1080
  • Sensor Size: 7.7 x 4.3mm
  • Quantum Efficiency: 92%
  • Read Noise: As low as 0.6e

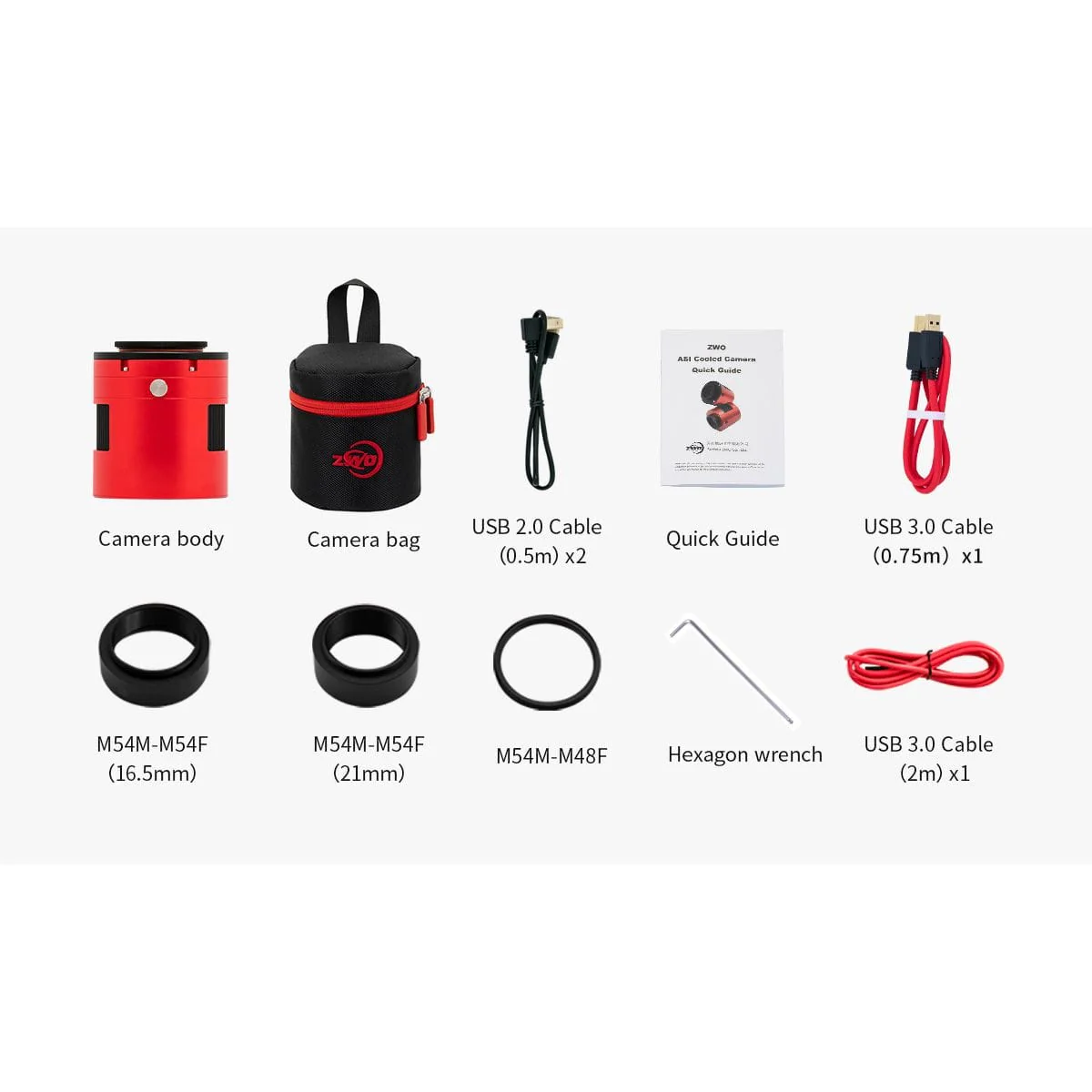

What's in the Box

  • Camera body
  • Camera bag
  • USB 2.0 cable (0.5m) x2
  • Quick guide
  • USB 3.0 cable (0.75m) x1
  • M54M-M54F (16.5mm) adapter
  • M54M-M54F (21mm) adapter
  • M54M-M48F adapter
  • Hexagon wrench
  • USB 3.0 cable (2m) x1
  • Power supply not included: This ZWO Pro/Cooled camera must be powered from an external 12V DC power source with a minimum of 3 amps in order to run the TEC cooler and connect to your computer. The camera may not be recognized by a computer or operate properly if only the USB3.0 cable is connected to your computer. You can use ZWO’s 12V DC power supply, the DC Out port on an ASIAir or an external battery. These are not included with the camera.


$1,700.10
ZWO ASI2600MM DUO MONO CMOS Astrophotography with Built-in Guiding Sensor - ASI2600MM-DUO—
$1,700.10

Product Information

Shipping & Returns

Description

ZWO ASI2600MM Duo Overview

Building on the success of the ASI2600MC Duo with its built-in guide camera, ZWO has now added this technology into their best-selling monochrome camera! The ASI2600MM Duo features the same main camera sensor as the best-selling ASI2600MM Pro, which has produced countless stunning astrophotography images.

Built-in Guide Sensor

Here are a few benefits of having a guide camera in the main camera body:

  • Eliminates the need for a guide scope or off-axis guider (OAG)
  • Allows more accurate guiding at your telescope's full focal length
  • No OAG allows for extra room in your image train for rotators & more
  • Similar cost to guide camera and guide scope/OAG purchased separately

We will add more details here soon when we get them from ZWO!

Full Specifications

Please note these specifications are simply the expected specs based on the ASI2600MC Duo (color) and final specifications may change slightly.

Main Camera:

  • Sony IMX571 APS-C size Back-illuminated CMOS sensor (monochrome)
  • Resolution: 6248×4176
  • Pixel Size: 3.76μm
  • Sensor Size: 23.5mm x 15.7mm (28.3mm diagonal)
  • Max FPS at full resolution: 15FPS in RAW 8 mode
  • Read Noise: 1.0e-3.3e
  • QE peak: >80%
  • Full well: 73ke (at gain -25)
  • Exposure Range: 32μs-2000s
  • ADC: 16 bit (14-stop dynamic range)
  • USB: 3.0
  • Telescope Connection: M54x0.75
  • Back Focus: 17.5mm (standard) or 12.5mm (without tilt plate)

Guide Camera:

  • SC2210 1/1.8" size CMOS sensor (monochrome, same as ASI220MM Mini)
  • Resolution: 1920x1080
  • Sensor Size: 7.7 x 4.3mm
  • Quantum Efficiency: 92%
  • Read Noise: As low as 0.6e

What's in the Box

  • Camera body
  • Camera bag
  • USB 2.0 cable (0.5m) x2
  • Quick guide
  • USB 3.0 cable (0.75m) x1
  • M54M-M54F (16.5mm) adapter
  • M54M-M54F (21mm) adapter
  • M54M-M48F adapter
  • Hexagon wrench
  • USB 3.0 cable (2m) x1
  • Power supply not included: This ZWO Pro/Cooled camera must be powered from an external 12V DC power source with a minimum of 3 amps in order to run the TEC cooler and connect to your computer. The camera may not be recognized by a computer or operate properly if only the USB3.0 cable is connected to your computer. You can use ZWO’s 12V DC power supply, the DC Out port on an ASIAir or an external battery. These are not included with the camera.
